INDUSTRIAL SCALES



Contech offers total weighing solution for all the Industrial segments with various options.  The applications are Table Top Scales, Piece Counting Scales, Platform Scales, Floor  Scales, Pallet Scales, Waterproof Scales, Flameproof Scales, etc


Click On Image For ZOOM

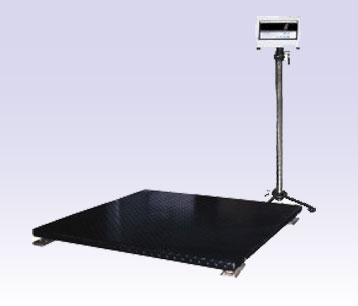

   Floor Scales ( 200G To 10 Ton )

Incorporates multiple number(4) of high quality tool steel IP 67 shear beam loadcells.
Rugged heavy duty Mild Steel Checkered platform.
Indicator housed in a sturdy metal enclosure.
Bright LED display.
Optional Battery Backup.
Overload and shock load protection.
100% subtractive tarring range.
Standard bi-directional RS-232 Interface.
Audio visual overload indication.
Piece counting, filling, printing, accumulation, weighing in multiple units.



  Specifications

  Capacity  1T/2T
 2T/3T   3T/5T/10T
  Readability  200g/500g
 500g   1kg/1kg/2kg
  Linearity (+/-)  1g
  2g   2g
  Platform Size  1200x1200mm  1500x1500mm   2000mx2000mm
 Taring Range : Up to full capacity
 Response time : 3 secs
 Power Req : 90-250V, 50/60Hz, 10 Watt
 Operating Temperature : 10 to 45 deg C
