GEM AND JEWELLERY BALANCES



 Contech has various options for the Gem & Jewellery Industries – Carat Balances, Gold Balances & Silver Scales. Models include High Precision  Balances incorporating Electro Magnetic Force Compensation Technology for Diamond, Precious Stones and Gold. Economy models based on  Loadcell technology for less precision weighing in case of semi precious stones and silver.


Click On Image For ZOOM

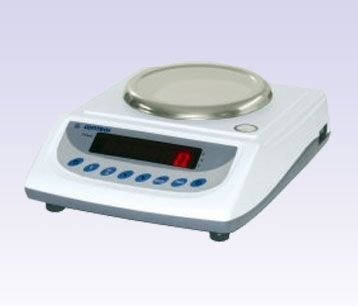

  Gold Scales (0.01 g - 600 g)

Incorporates high quality loadcells
Multiple weighing units, Gram, carat.
Piece counting facility, upto 25 different types
Storage of weights in memory and printing, upto 100 weights.
Power saving mode
Bi-directional RS232 interface to interface with computers and printers
Selectable baud rate.
Set point facility up to 2 limits.
Auto power off
Optional Peak hold facility
Date and time facility
Multiple print options with Sr.no, date, time and weight in horizontal/vertical mode.
Automatic zero tracking.
User selectable Tare/Zero mode option with Net/gross facility for minimum use.
Density determination option.
GSM Computation
% weighing & calibration.
Weight slip printing option.
Overload & Shock load Protection
Bright LED display
High Bright Green LED display (Optional)
Battery backup (Optional). Rechargeable sealed maintenance free battery.
Additional display (Optional)
Breeze Shield (Optional)




  Specifications

  Models   CT-300  CT-600    CT-1001  CT-3001
  Capacity  300g
  600g   1000g  3000g
  Readability  0.01g
 0.01g   0.1g  0.1g
  Pan Size (mm dia)  115  115   125  150
 Taring Range : Up to full capacity
 Response time : 3 secs
 Power Req : 90-250V, 50/60Hz, 10 Watt
