ELECTRO CHEMICAL INSTRUMENTS



 Contech, the pioneers in Laboratory Balances has added high quality laboratory equipments like pH Meters, Conductivity Meters, DO Meters,  Polarimeters, Refractometers, Melting Point Apparatus to the existing range. Vast experience and in depth knowledge of Laboratory needs  and instrumentation has helped Contech to roll out these most advanced technological products.


Click On Image For ZOOM

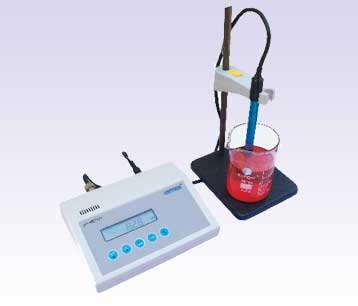

   pH Meters
Advanced Microcontroller based design.
Display of pH, mv, temp on backlite LCD.
RS-232 Interface ( Optional ).
Inbuilt RTC ( Optional ).
GLP compliant ( Optional ) .
Entry of buffer value, machine ID through keyboard for the GLP print out.
3 point Automatic pH Calibration with buffer standards 4.0, 7.0 & 9.2 pH
3 point manual pH calibration using with known buffer standards.
Automatic temperature compensation ( Optional ).
Entry of temperature through keyboard in the absence of temperature sensor
Storage upto 50 test results
Display of time based pH sampling data upto 200 samples.




  Specifications

  MODELS  CpH-102  CpH-103
 pH Range   0-14pH  0-14pH
 pH Resolution  0.01pH  0.001pH
 pH Accuracy  +0.02pH   +0.002pH
 Temperature compensation   0-100°C   0-100°C
 mV   +2000mV  +2000mV
 mV Resolution  1mV  0.1mV
 mV Accuracy  +2mV  +0.2mV

 Supply Voltage: 90-250V, 50 Hz
 Operating temperature: 10-45 deg C
 Humidity: 5-80% Rh
 Automatic pH calibration: 3 points 4.0, 7.0 & 9.2pH
 Manual pH calibration : 3 points using known buffers.
 Display: Backlite LCD
 pH sensor: Glass pH electrod
