OPTICAL INSTRUMENTS

Polarimeter measures the optical rotation of substances which helps to determine concentration and purity in pharmaceutical, chemical, food and cosmetic Industries. The unit displayed is in International Sugar Scale (ISS)

Click On Image For ZOOM

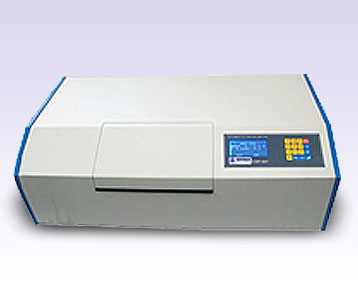

POLARIMETER Model : CDP-001

Based on optical null principle.

Large Backlite LCD screen.

Calculation of average & RMS value.

RS-232 Interface

Measurement of dark sample upto 1% transmittance.

Various types of sample tubes, sample tube length

100 mm and 200mm

Measures optical rotation, specific rotation,

concentration and sugar content.

Specifications

Measuring Range :	-120o to 120 o Z
Resolution :	+0.001o Z
Accuracy :	+/- (0.03Z + measured value X 0.05%)
Light Source :	Sodium Lamp 589 Nm
Lowest sample transmittance :	1%
Power Supply :	220 V +/-10%, 50Hz
imensions :	600x320x220mm
Weight :	30kg
